享元模式 (Flyweight Pattern) - 实现对象的复用

享元模式以共享的方式高效地支持大量细粒度对象的重用，享元对象能做到共享的关键是区分了内部状态(Intrinsic State)和外部状态(Extrinsic State)。

• 内部状态是存储在享元对象内部并且不会随环境改变而改变的状态，内部状态可以共享。如字符的内容，不会随外部环境的变化而变化，无论在任何环境下字符“a”始终是“a”，都不会变成“b”。
• 外部状态是随环境改变而改变的、不可以共享的状态。享元对象的外部状态通常由客户端保存，并在享元对象被创建之后，需要使用的时候再传入到享元对象内部。一个外部状态与另一个外部状态之间是相互独立的。如字符的颜色，可以在不同的地方有不同的颜色，例如有的“a”是红色的，有的“a”是绿色的，字符的大小也是如此，有的“a”是五号字，有的“a”是四号字。而且字符的颜色和大小是两个独立的外部状态，它们可以独立变化，相互之间没有影响，客户端可以在使用时将外部状态注入享元对象中。

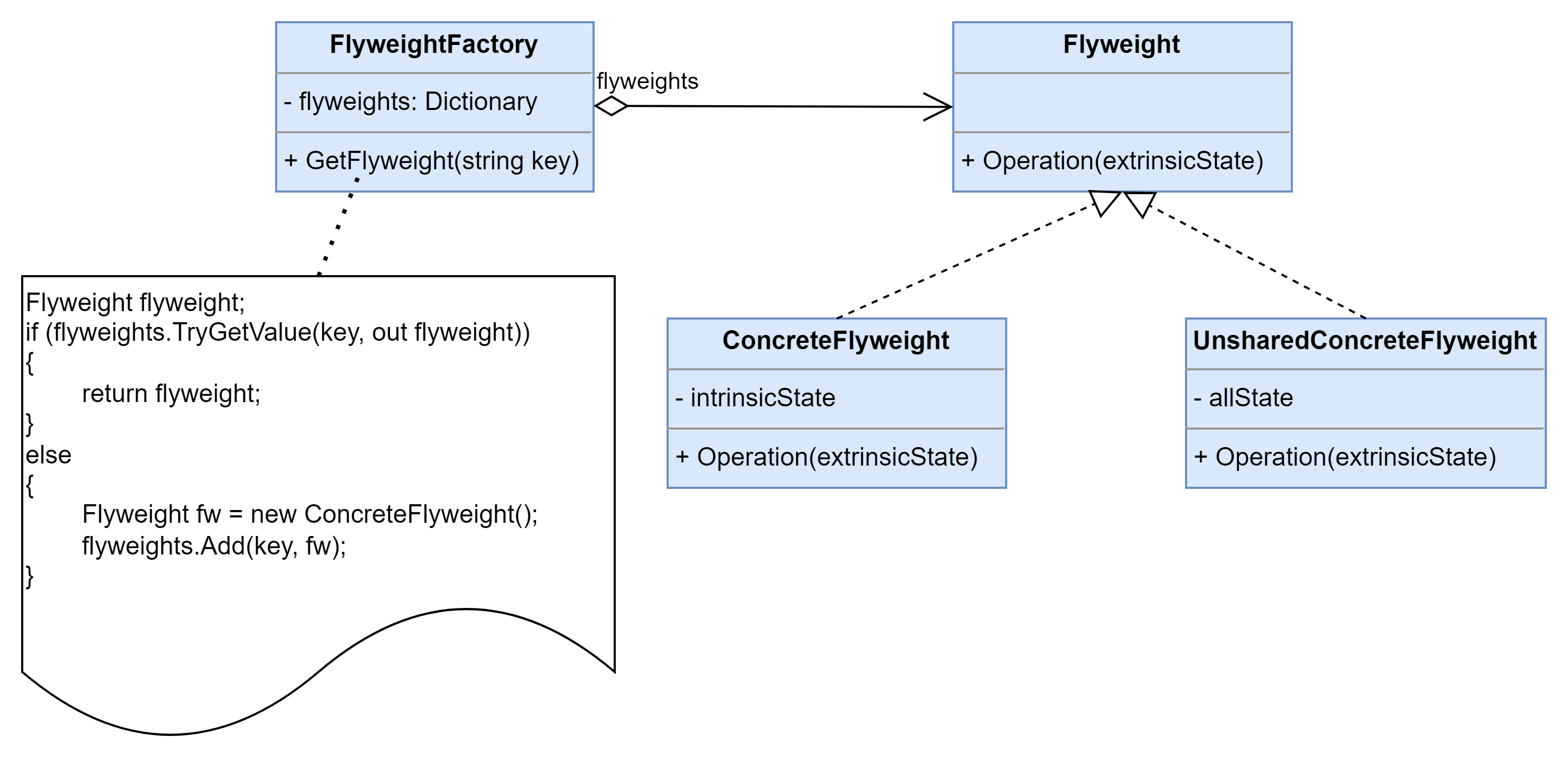

结构图

• Flyweight（抽象享元类）：通常是一个接口或抽象类，在抽象享元类中声明了具体享元类公共的方法，这些方法可以向外界提供享元对象的内部数据（内部状态），同时也可以通过这些方法来设置外部数据（外部状态）。
• ConcreteFlyweight（具体享元类）：它实现了抽象享元类，其实例称为享元对象；在具体享元类中为内部状态提供了存储空间。通常我们可以结合单例模式来设计具体享元类，为每一个具体享元类提供唯一的享元对象。
• UnsharedConcreteFlyweight（非共享具体享元类）：并不是所有的抽象享元类的子类都需要被共享，不能被共享的子类可设计为非共享具体享元类；当需要一个非共享具体享元类的对象时可以直接通过实例化创建。
• FlyweightFactory（享元工厂类）：享元工厂类用于创建并管理享元对象，它针对抽象享元类编程，将各种类型的具体享元对象存储在一个享元池中，享元池一般设计为一个存储“键值对”的集合（也可以是其他类型的集合），可以结合工厂模式进行设计；当用户请求一个具体享元对象时，享元工厂提供一个存储在享元池中已创建的实例或者创建一个新的实例（如果不存在的话），返回新创建的实例并将其存储在享元池中。

示例

using System;
using System.Collections.Generic;
using System.Linq;
// Use Json.NET library, you can download it from NuGet Package Manager
using Newtonsoft.Json;

namespace DesignPatterns.Flyweight
{
    // The Flyweight stores a common portion of the state (also called intrinsic
    // state) that belongs to multiple real business entities. The Flyweight
    // accepts the rest of the state (extrinsic state, unique for each entity)
    // via its method parameters.
    public class Flyweight
    {
        private Car _sharedState;

        public Flyweight(Car car)
        {
            this._sharedState = car;
        }

        public void Operation(Car uniqueState)
        {
            string s = JsonConvert.SerializeObject(this._sharedState);
            string u = JsonConvert.SerializeObject(uniqueState);
            Console.WriteLine($"Flyweight: Displaying shared {s} and unique {u} state.");
        }
    }

    // The Flyweight Factory creates and manages the Flyweight objects. It
    // ensures that flyweights are shared correctly. When the client requests a
    // flyweight, the factory either returns an existing instance or creates a
    // new one, if it doesn't exist yet.
    public class FlyweightFactory
    {
        private List<Tuple<Flyweight, string>> flyweights = new List<Tuple<Flyweight, string>>();

        public FlyweightFactory(params Car[] args)
        {
            foreach (var elem in args)
            {
                flyweights.Add(new Tuple<Flyweight, string>(new Flyweight(elem), this.getKey(elem)));
            }
        }

        // Returns a Flyweight's string hash for a given state.
        public string getKey(Car key)
        {
            List<string> elements = new List<string>();

            elements.Add(key.Model);
            elements.Add(key.Color);
            elements.Add(key.Company);

            if (key.Owner != null && key.Number != null)
            {
                elements.Add(key.Number);
                elements.Add(key.Owner);
            }

            elements.Sort();

            return string.Join("_", elements);
        }

        // Returns an existing Flyweight with a given state or creates a new
        // one.
        public Flyweight GetFlyweight(Car sharedState)
        {
            string key = this.getKey(sharedState);

            if (flyweights.Where(t => t.Item2 == key).Count() == 0)
            {
                Console.WriteLine("FlyweightFactory: Can't find a flyweight, creating new one.");
                this.flyweights.Add(new Tuple<Flyweight, string>(new Flyweight(sharedState), key));
            }
            else
            {
                Console.WriteLine("FlyweightFactory: Reusing existing flyweight.");
            }
            return this.flyweights.Where(t => t.Item2 == key).FirstOrDefault().Item1;
        }

        public void listFlyweights()
        {
            var count = flyweights.Count;
            Console.WriteLine($"\nFlyweightFactory: I have {count} flyweights:");
            foreach (var flyweight in flyweights)
            {
                Console.WriteLine(flyweight.Item2);
            }
        }
    }

    public class Car
    {
        public string Owner { get; set; }

        public string Number { get; set; }

        public string Company { get; set; }

        public string Model { get; set; }

        public string Color { get; set; }
    }

    class Program
    {
        static void Main(string[] args)
        {
            // The client code usually creates a bunch of pre-populated
            // flyweights in the initialization stage of the application.
            var factory = new FlyweightFactory(
                new Car { Company = "Chevrolet", Model = "Camaro2018", Color = "pink" },
                new Car { Company = "Mercedes Benz", Model = "C300", Color = "black" },
                new Car { Company = "Mercedes Benz", Model = "C500", Color = "red" },
                new Car { Company = "BMW", Model = "M5", Color = "red" },
                new Car { Company = "BMW", Model = "X6", Color = "white" }
            );
            factory.listFlyweights();

            addCarToPoliceDatabase(factory, new Car {
                Number = "CL234IR",
                Owner = "James Doe",
                Company = "BMW",
                Model = "M5",
                Color = "red"
            });

            addCarToPoliceDatabase(factory, new Car {
                Number = "CL234IR",
                Owner = "James Doe",
                Company = "BMW",
                Model = "X1",
                Color = "red"
            });

            factory.listFlyweights();
        }

        public static void addCarToPoliceDatabase(FlyweightFactory factory, Car car)
        {
            Console.WriteLine("\nClient: Adding a car to database.");

            var flyweight = factory.GetFlyweight(new Car {
                Color = car.Color,
                Model = car.Model,
                Company = car.Company
            });

            // The client code either stores or calculates extrinsic state and
            // passes it to the flyweight's methods.
            flyweight.Operation(car);
        }
    }
}

运行结果

FlyweightFactory: I have 5 flyweights:
Camaro2018_Chevrolet_pink
black_C300_Mercedes Benz
C500_Mercedes Benz_red
BMW_M5_red
BMW_white_X6

Client: Adding a car to database.
FlyweightFactory: Reusing existing flyweight.
Flyweight: Displaying shared {"Owner":null,"Number":null,"Company":"BMW","Model":"M5","Color":"red"} and unique {"Owner":"James Doe","Number":"CL234IR","Company":"BMW","Model":"M5","Color":"red"} state.

Client: Adding a car to database.
FlyweightFactory: Can't find a flyweight, creating new one.
Flyweight: Displaying shared {"Owner":null,"Number":null,"Company":"BMW","Model":"X1","Color":"red"} and unique {"Owner":"James Doe","Number":"CL234IR","Company":"BMW","Model":"X1","Color":"red"} state.

FlyweightFactory: I have 6 flyweights:
Camaro2018_Chevrolet_pink
black_C300_Mercedes Benz
C500_Mercedes Benz_red
BMW_M5_red
BMW_white_X6
BMW_red_X1

总结

当系统中存在大量相同或者相似的对象时，享元模式是一种较好的解决方案，它通过共享技术实现相同或相似的细粒度对象的复用，从而节约了内存空间，提高了系统性能。相比其他结构型设计模式，享元模式的使用频率并不算太高，但是作为一种以“节约内存，提高性能”为出发点的设计模式，它在软件开发中还是得到了一定程度的应用。

优点

1. 可以极大减少内存中对象的数量，使得相同或相似对象在内存中只保存一份，从而可以节约系统资源，提高系统性能。
2. 享元模式的外部状态相对独立，而且不会影响其内部状态，从而使得享元对象可以在不同的环境中被共享。

缺点

1. 享元模式使得系统变得复杂，需要分离出内部状态和外部状态，这使得程序的逻辑复杂化。
2. 为了使对象可以共享，享元模式需要将享元对象的部分状态外部化，而读取外部状态将使得运行时间变长。

适用场景

1. 一个系统有大量相同或者相似的对象，造成内存的大量耗费。
2. 对象的大部分状态都可以外部化，可以将这些外部状态传入对象中。
3. 在使用享元模式时需要维护一个存储享元对象的享元池，而这需要耗费一定的系统资源，因此，应当在需要多次重复使用享元对象时才值得使用享元模式。
